PAVELINK.SOA-Converter conversion tool, used to connect the SOA-based controller design, development and testing process of the common types of software tools. PAVELINK.SOA-Converter can provide IDL and service matrix file syntax and rules checking, automate the completion of a variety of different formats between the IDL file conversion, as well as other commonly used types of format files conversion. SOA-Converter provides syntax and rule checking of IDL and Service Matrix files, automated conversion between IDL files of many different formats, and conversion of other commonly used formats.

PAVELINK.SOA-Converter supports IDLs used by mainstream R&D tools in many industries, such as FIDL, OMG IDL, ROS2 Msg, Protobuf, vCDL, etc. It also provides comprehensive support for AUTOSAR CP/AP platform model files, bus communication database, diagnostic database, calibration database, service communication matrix, communication signaling matrix, etc. matrix, communication signal matrix, and so on.

PAVELINK.SOA-Converter v1.3.2 is now released, what kind of new features does the new release bring? Let's have a glimpse.

New Features of PAVELINK.SOA-Converter v1.3.2

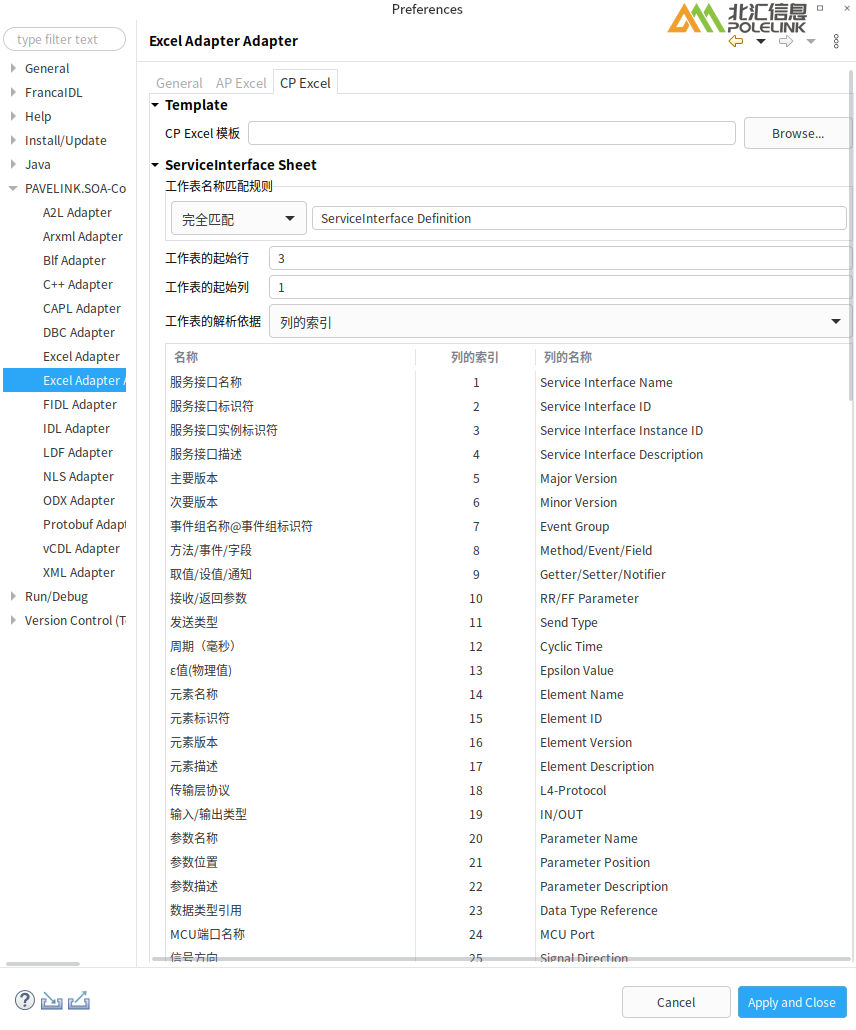

- New Excel Template Adaptation plug-in to adapt different communication matrix templates, support AP/CP

Developed based on SOA service matrix and AUTOSAR model transformation function, SOA Service matrix adaptation plug-in supports for user-defined service matrix data mapping relationships , to achieve the conversion of the user's existing template support and service matrix generation function . Not only can you customize the name matching rules for each Sheet page, but also can customize the correspondence between data index columns and names in the Sheet page.

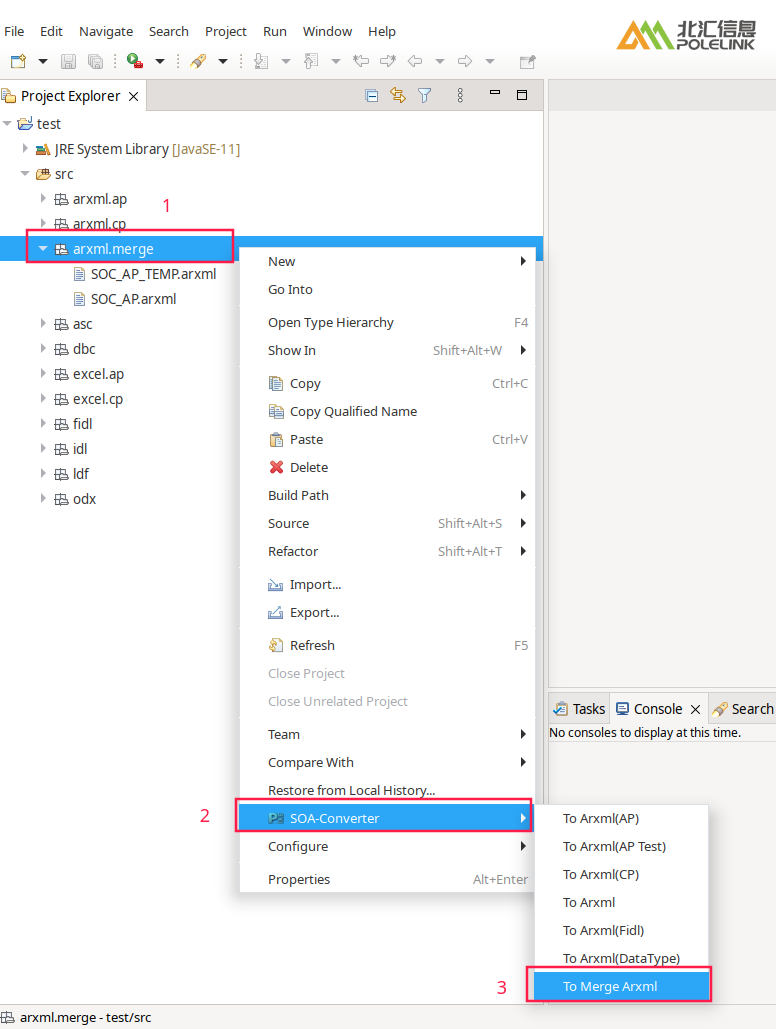

 - New ARXML merge function, support AUTOSAR_00048/AUTOSAR 4.5.0 version

During the architecture design stage, Service Matrix usually splits modules and assigns them to different departments for modeling, it is especially important to quickly merge AUTOSAR model files from different departments. The new ARXML file merging function supports merging multiple ARXML files into one complete ARXML file with one click, which ensures the integrity of AUTOSAR model file merging and avoids missing data such as interface services caused by manual merging.

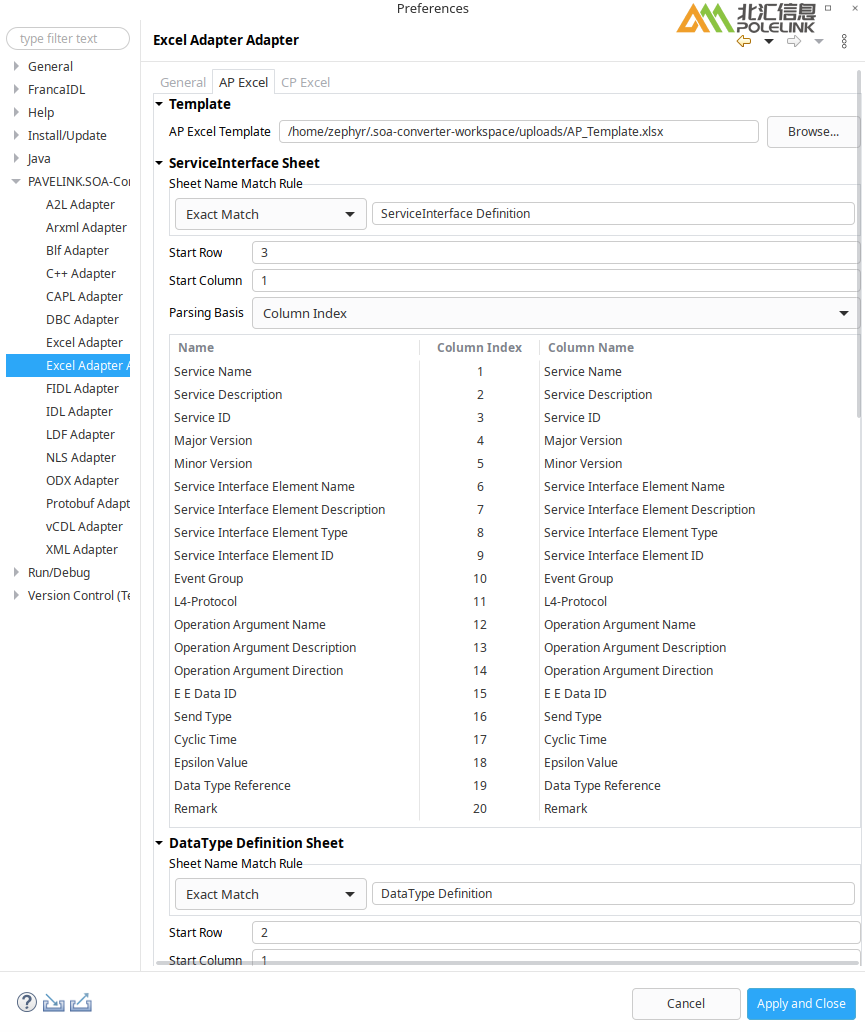

-New internationalization plugin, providing both Simplified Chinese and English languages

- New LDF parsing to generate Excel

- New ASC parsing to Excel

- New AP ARXML to vCDL

- New CP ARXML to vCDL

Optimization of existing features

- Conversion menu filtering, according to the selected file type or Excel supported conversion function filtering display.

- Added DBC CANFD protocol conversion support

- Add AP/CP Excel to AP/CP ARXML to generate content configuration and data validation, including data types, interfaces and services

- Added Excel to vCDL to generate content configuration and data validation, including data types, interfaces and services

- Add AP/CP Excel to Fidl data validation, including data types and interfaces

- Optimize Excel cell merge data parsing

- Optimize Fidl to AP ARXML and AP ARXML to Fidl conversion code to improve functional stability

- Improve the template adaptation function and organize the constants of each module to improve the convenience and standardization of development

Free Trial of the New Version of SOA-Converter

SOA-Converter (PAVELINK.SOA-Converter-v1.3.2) is available for free trial. If you are struggling with the many IDLs and the complexity of manually entering or converting them, please contact us to request a trial of the tool.
