PAVELINK.SOA-Converter conversion tool is used to bridge various common software tools in the controller testing phase based on SOA architecture. PAVELINK.SOA-Converter provides syntax and rule checks for files such as service matrices and signal matrices, as well as conversion between commonly used file formats. This includes but is not limited to: AUTOSAR CP/AP platform model files, bus communication databases, diagnostic databases, service communication matrices, communication signal matrices, etc.

To improve the efficiency of SOA architecture design and development in the automotive industry and optimize the user experience, we have released a comprehensive upgrade to PAVELINK.SOA-Converter. This new version 2.1.2 focuses on improving software performance, expanding functional features, and enhancing user interaction.

I. Version Optimization

New Interface Design

• Restructured Layout: Adopts an intuitive partition design, making core functions clearly visible

• Simplified Menu: Streamlines function entry points, making operations simple and clear

• Unified Style: Consistent styling of interface elements, providing a more comfortable visual experience

Figure 1: Tool Interface and Layout Adjustment

Fixed the issue where the generated CP ARXML could not be correctly parsed in CANoe simulation data.

II. New Features

• New ARXML Preview and Editing Function
  Allows quick modification of services, interfaces, data types, enumerations, etc. After data adjustments, the modified ARXML can be directly exported.

Figure 2: ARXML Preview and Editing

• New ECU-Based ARXML Splitting Function
  Automatically splits the ARXML into corresponding ECU files based on the selected ECU.

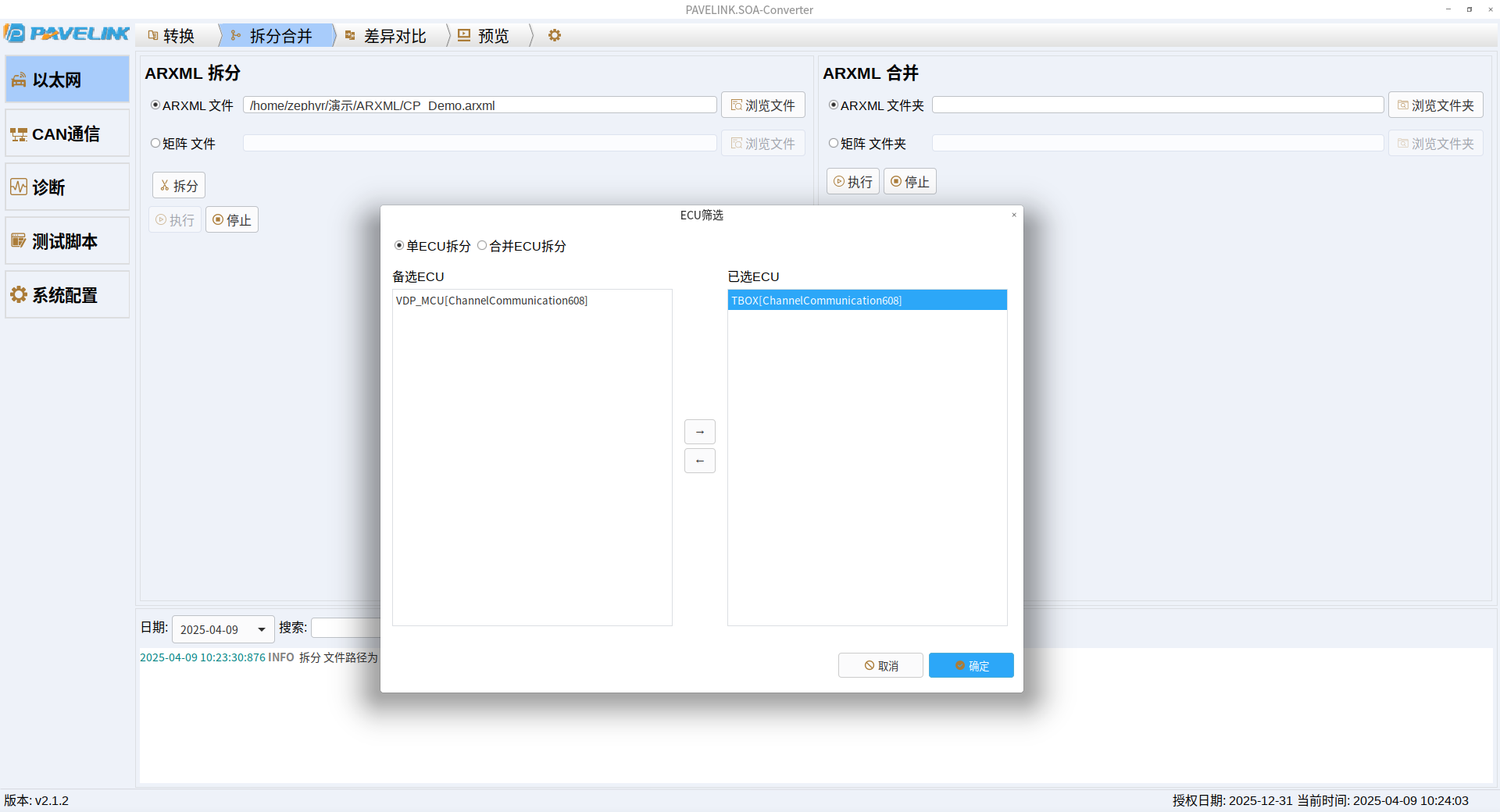

Figure 3: ECU-Based ARXML Splitting

• New DBC Batch Preview Function
  Supports direct preview of network segments, nodes, messages, signals, attributes, etc.

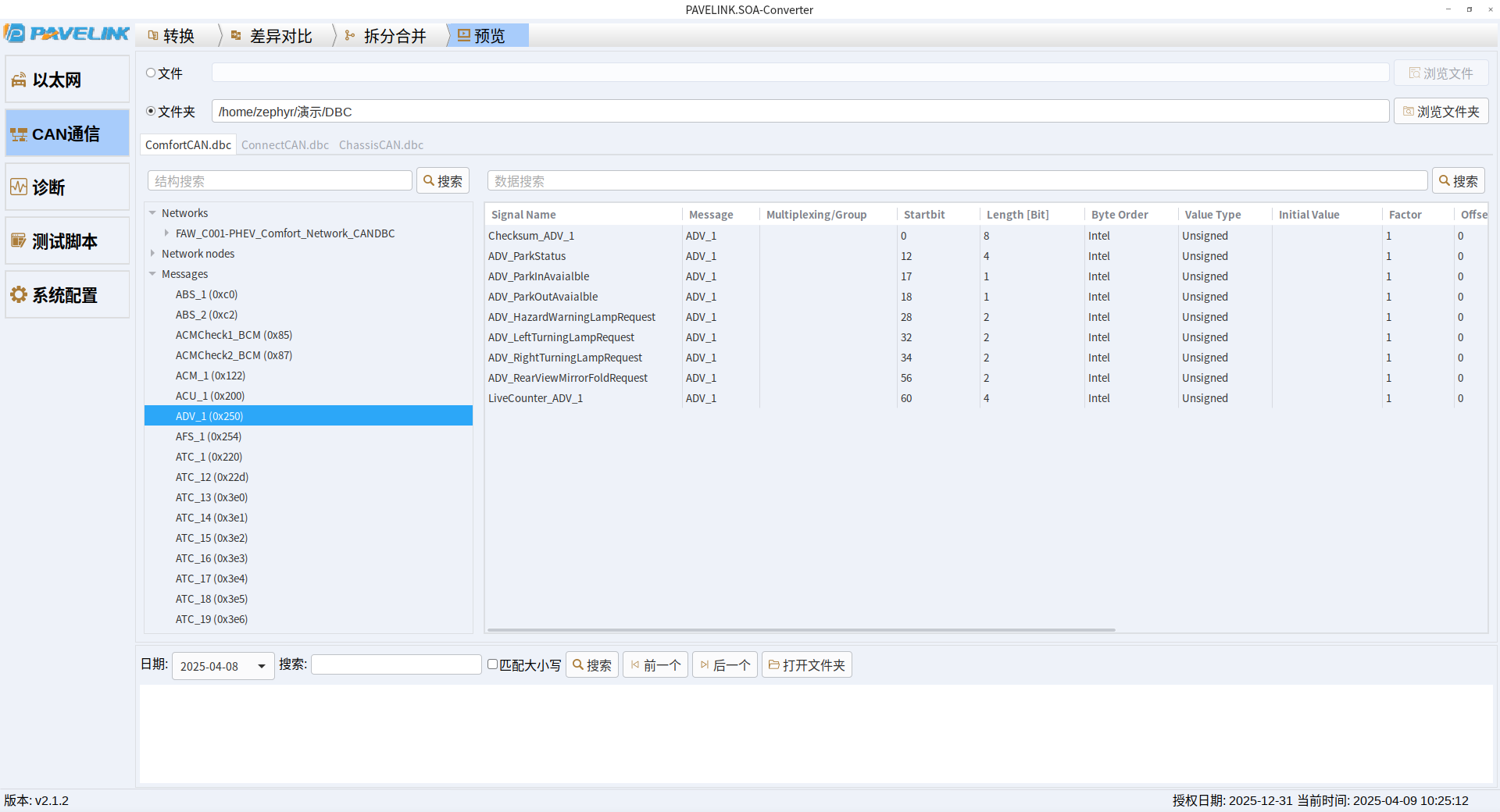

Figure 4: DBC Batch Preview

• New Node-Based DBC Splitting Function
  Automatically splits files based on selected nodes into corresponding node files.

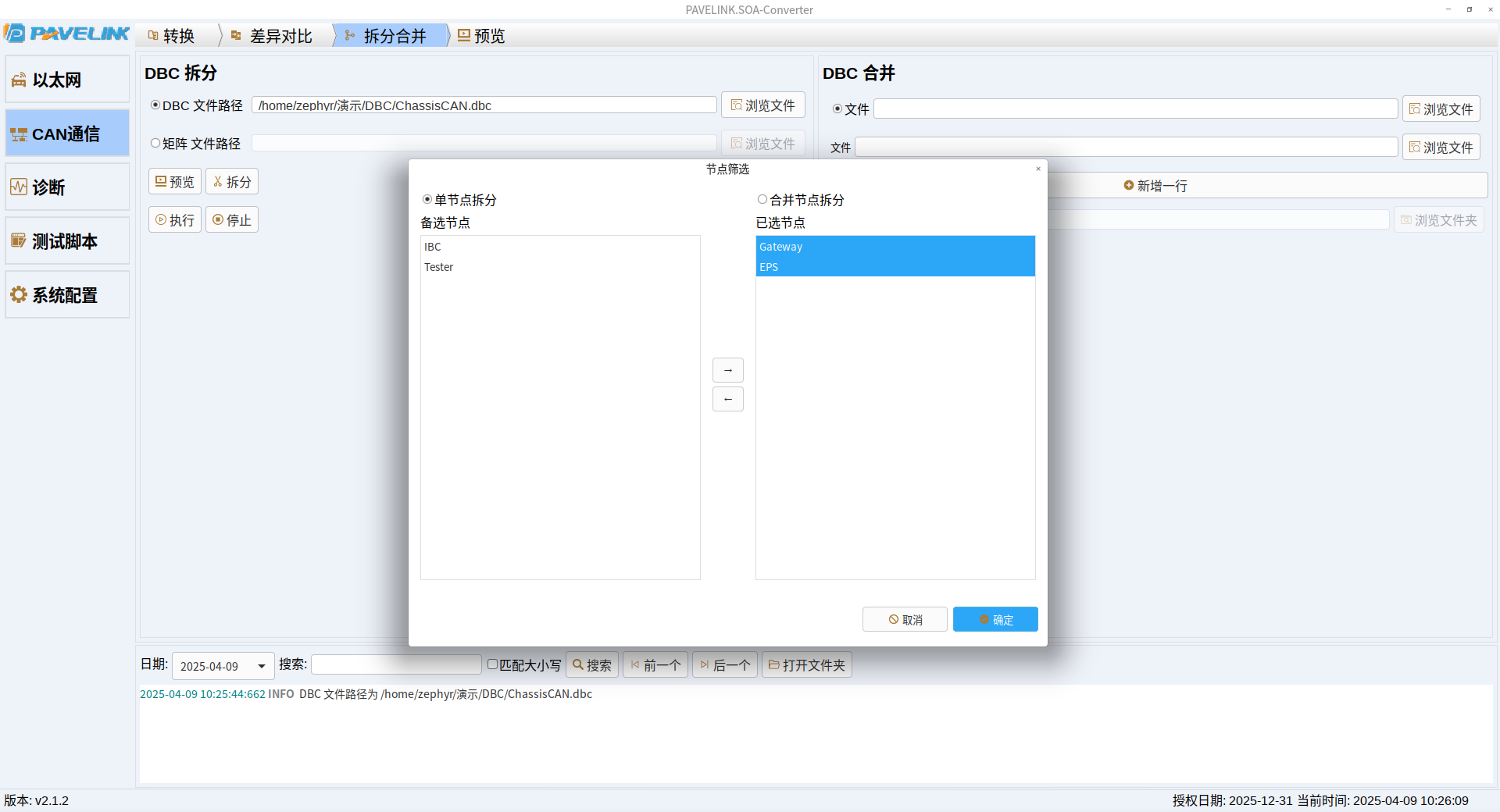

Figure 5: Node-Based DBC Splitting

• New Test Script Generation Function
  Parses database files such as DBC, LDF, PDX, ARXML to extract relevant information and quickly generate CAPL parameter scripts.

Figure 6: Test Script Generation

You are welcome to contact us to apply for a trial of PAVELINK.SOA-Converter 2.1.2.
