PAVELINK.SOA-Converter is a conversion tool designed to bridge the gap between various software tools commonly used in the design, development, and testing processes of SOA-based controllers. PAVELINK.SOA-Converter can perform syntax and rule checks for IDL and service matrix files, automate the conversion between different formats of IDL files, and facilitate the conversion of various other commonly used file formats.
PAVELINK.SOA-Converter is compatible with multiple industry-standard R&D tools that use different IDL formats, such as FIDL, OMG IDL, ROS2 Msg, Protobuf, vCDL, and offers extensive support for AUTOSAR CP/AP platform model files, bus communication databases, diagnostic databases, calibration databases, service communication matrices, communication signal matrices, and more.

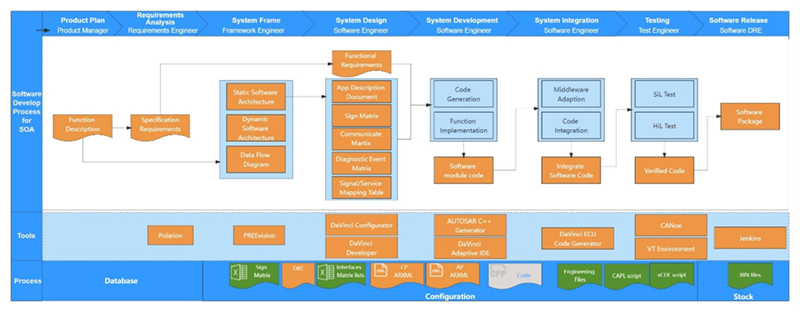

Typical Development Process Diagram Based on SOA Architecture
In the development process of automotive electronics based on the SOA architecture, the initial stage of architectural design involves collecting service interface and data type requirements from various controllers using a service matrix. These requirements transformed into ARXML and undergo in-depth model configuration in specialized architectural design tools. PAVELINK.SOA-Converter enhances the efficiency of system architecture and design by facilitating the conversion between the service matrix and AUTOSAR model files, addressing collaborative work and iterative output issues among architectural personnel.

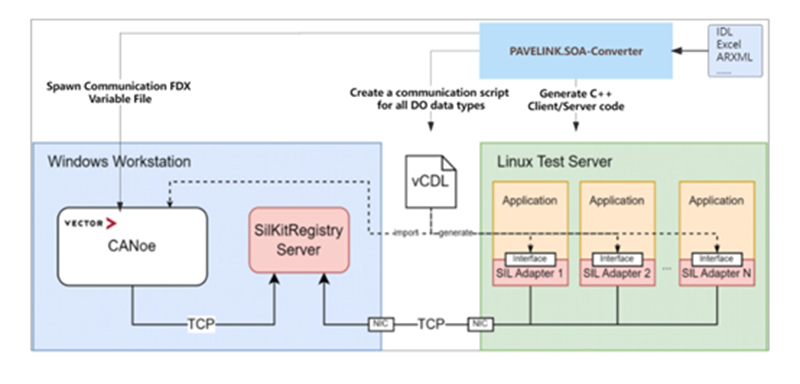

SOA Service Interface Testing Node Simulation Diagram
PAVELINK.SOA-Converter can generate simulation test code from service interface files or AUTOSAR model files output by architectural design tools. The generated test code can be integrated with toolchains like CANoe to perform Software-in-the-Loop (SiL) testing. This not only enhances the testing toolchain and efficiency but also addresses issues related to interface parameter testing and integrated service call testing.
Additionally, it provides a command-line interface, which can be integrated with Continuous Integration (CI) and Continuous Testing (CT) toolchains, offering the essential foundation for building an automated SiL testing environment.
Features of PAVELINK.SOA-Converter include:
AUTOSAR Specification Support
Compatible with various AUTOSAR versions, allowing it to conduct matrix-to-model conversions tailored to the specific AUTOSAR version in use.
Pre-installed matrix template files
The tool provides standard AUTOSAR CP/AP service matrix templates, bus signal matrix templates, Ethernet communication matrix templates, etc.
One-click automatic IDL conversion
The tool supports mainstream Interface Description Language (IDL) conversions with one-click conversions between different IDLs, visual conversion processes, and precise error alerts.
All-in-one IDL Editing Environment
The tool provides a user-friendly IDL editing environment with support for syntax validation, keyword highlighting, reference locating, error prompts, and more.
Built-in configuration library
The tool integrates with the configuration library environment, supports automatic synchronization of source files, provides update notifications, and automatically converts them into target files based on parameterized configurations.
Command Line and Parameterization
The tool offers corresponding command line parameters, enabling automated background conversions based on input commands and parameters, along with comprehensive conversion logs.
Cross-Platform, Installation-Free Support
The tool is a cross-platform GUI and command-line toolkit, compatible with Windows, Linux, and Mac OSX.
Automation Business Chain Support
The tool offers interface calls, supports file stream input and output, and integrates with automated business scenarios, facilitating automated testing processes.

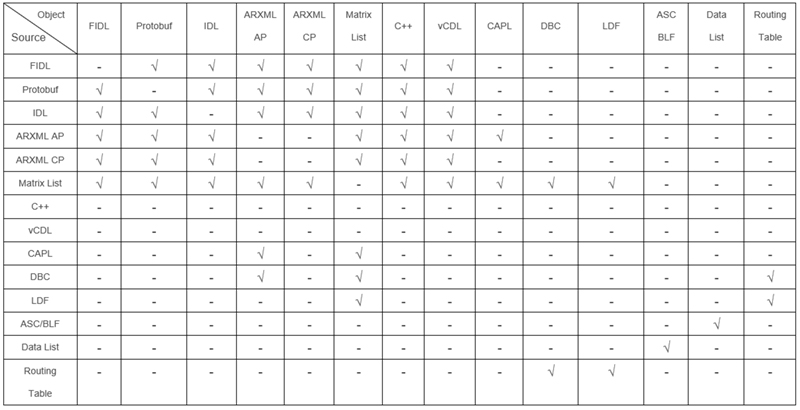

PAVELINK.SOA-Converter feature plugins:
