VVT Gasoline ECM Signal Box

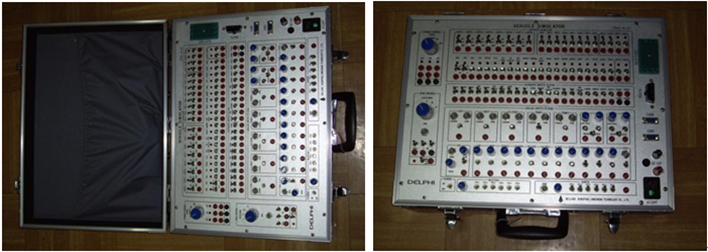

The VS-VVT newly incorporates VVT control functionality and is designed for use in the development of the Engine Control System. It was built from the design of the Vehicle Simulator model, and updated with two new CAM signals specifically for VVT control. The two signals can be independently adjusted within a sixty degree range, in one degree increments.

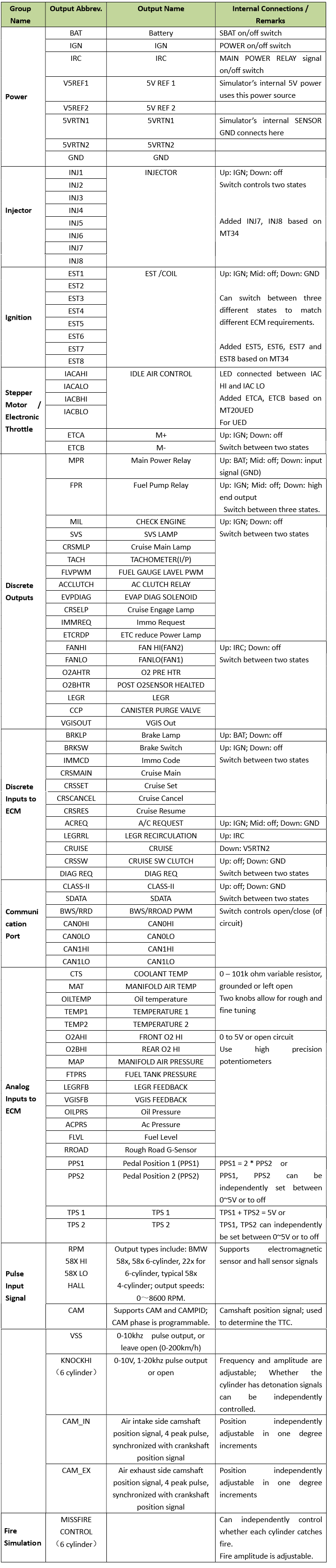

The Vehicle simulator can simulate the wide array of Electronic Control System signals. The output signals are detailed below, with additional information in the right column. The signal list can be modified according to your Engine Control Modules and specific requirements.
