Vehicle Signal Simulation Box

The VS-GDI newly incorporates GDI control functionality and is designed for use in the development of the Engine Control System. It was built from the design of the VS-VVT model, and updated with Turbo Booster control input and output, fuel injector, high pressure oil pump, oil rail pressure sensor, brake booster pumps and other signals, by modifying the original circuit.

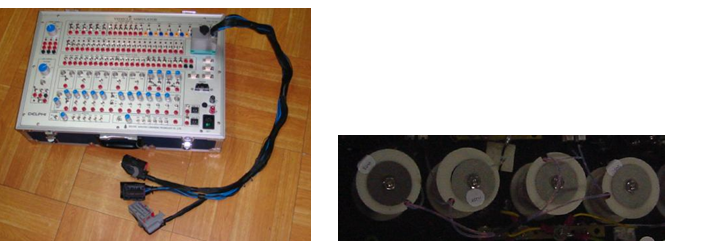

In order to more realistically simulate the high-pressure nozzles and pumps of GDI, installation of a dedicated analog-load in the Simulator box inside,for high-power inductor winding, of which six analog GDI nozzle, a simulation of high-pressure oil pump.

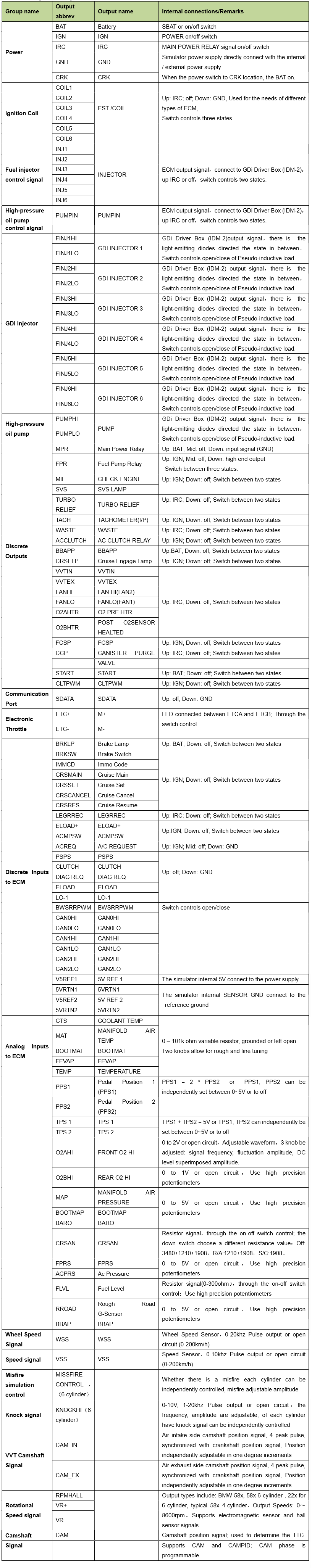

The Vehicle simulator can simulate the wide array of Electronic Control System signals. The output signals are detailed below, with additional information in the right column. The signal list can be modified according to your Engine Control Modules and specific requirements.
